    Apollo510 Ultra-Low Power Edge AI SoC

    Advanced AI on a Chip

    Apollo510 keyvisual front mobile

    Apollo510 is Ambiq’s next-generation ultra-low power Edge AI SoC, delivering industry-leading energy efficiency and up to 300x more AI inference throughput per joule. Designed for advanced speech, vision, health, and industrial AI applications, Apollo510 enables intelligent battery-powered devices with high performance, extended battery life, and real-time on-device intelligence.

    Where to Buy
    Design Resources

    Endless Edge Capabilities

    Apollo510 1

    01

    Outstanding Graphics

    A 2.5D GPU with vector graphics acceleration for vibrant, crystal-clear, and smooth graphics, a 3.5x overall performance enhancement over the Apollo4 Plus family

    02

    Leading Energy-Efficiency

    A complete overhaul in hardware and software to include the Arm® Cortex®-M55 CPU with Helium Technology to achieve processing speeds up to 250MHz.

    03

    Built for Next-Gen AI

    Capable of performing a vast majority of AI, all WITHOUT the need for an NPU, including low-power sensor monitoring, always on voice commands, teleco-quality audio enhancements and more.

    04

    Robust Security

    Built on Ambiq’s secureSPOT® platform and Arm® TrustZone® technology with a physical unclonable function (PUF), tamper-resistant OTP, and secure peripherals — establishing a trusted execution environment (TEE).

    Block Diagram Apollo510

    Apollo 510 diagram

    Specifications

    High-Performance Arm Cortex-M55 Processor with FPU

    • Integrated 64 kB Instruction Cache and 64 kB Data Cache
    • Integrated 256 kB Instruction Tightly Coupled Memory (ITCM) and 512 kB Data TCM (DTCM)
    • Up to 250 MHz clock frequency
    • Integer, half-precision and single-precision floating-point Mprofile Vector Extensions (MVE) supported
    • Memory Protection Unit (MPU)

    Security Features

    • Arm Trust Zone
    • Secure Boot
    • Secure over-the-air (OTA) updates
    • Secure wired updates
    • Key revocation

    Ultra-low Power Memory

    • Up to 4MB of non-volatile memory for code/data
    • Up to 3.75MB of TCM and system RAM for code/data

    Ultra-Low Power Interface for On- and Off-Chip Sensors

    • 12-bit ADC, 11 selectable input channels
    • Up to 1.7 MS/s sampling rate
    • Temperature sensor with ±3°C accuracy

    Ultra-low Power Flexible Serial Peripherals

    • 2x 2/4/8-bit SPI master interfaces
    • 2x 2/4/8/16-bit SPI master interface
    • 8x I2C/SPI masters for peripheral communication
    • I2C/SPI slave for host communications
    • 4x UART modules with FIFOs and flow control
    • 1x USB 2.0 HS/FS device controller
    • 2x SDIO (SD3.0) / eMMC (v4.51)

    Display

    • Memory in Pixel (MiP) display interface with fast-forward
    • LCD controller
    • MIPI DSI 1.2 with 2 data lanes up to 1.5 Gbps (768 Mbps per lane)
    • Up to 640×480 resolution at 60 fps
    • 4 layers with alpha blending
    • Frame Buffer Decompression

    Audio Processing

    • 1x LP Always-on Audio ADC
    • 2x PDM DMIC interface
    • 2x full-duplex multichannel I2S ports, 1 with ASRC

    Graphics


    graphicSPOT logo

    • 96 MHz / 250 MHz operating modes
    • 2.5D-like graphics accelerator with Vector Graphics (VG)
    • Anti-aliasing hardware acceleration
    • Rasterizer / full alpha blending / texture mapping
    • Texture / frame buffer compression (TSC4, 6, 6A and 12)
    • Dithering and radial/conical fill support

    Rich Set of Clock Sources

    • PLL for precise clocking applications
    • 16-52 MHz and 32.768 kHz Crystal (XTAL) oscillators
    • 1 kHz Low Frequency RC (LFRC) oscillator
    • 2x High Frequency RC (HFRC) oscillator

    Power Management

    • Operating range: 1.71-2.2 V
    • SIMO buck
    • Multiple I/O voltages supported

    Applications

    • Smart watches/bands
    • Wireless sensors and IoT
    • Activity and fitness monitors
    • Children’s watches
    • Animal trackers
    • Motion and tracking devices
    • Alarms and security system
    • Far-field voice remotes
    • Consumer medical devices
    • Predictive maintenance
    • Smart home

    Package Options

    • Several BGA packages with 48-190 GPIO

    Ordering Information
    (-20 to +70C)

    • AP510NFA-CCR (CSP, No connectivity built in)
    • AP510NFA-CBR (BGA, No connectivity built in)

    Ordering Information
    (-40 to +85C)

    • AP510NFA-ICR (CSP, No connectivity built in)
    • AP510NFA-IBR (BGA, No connectivity built in)

    Where to Buy

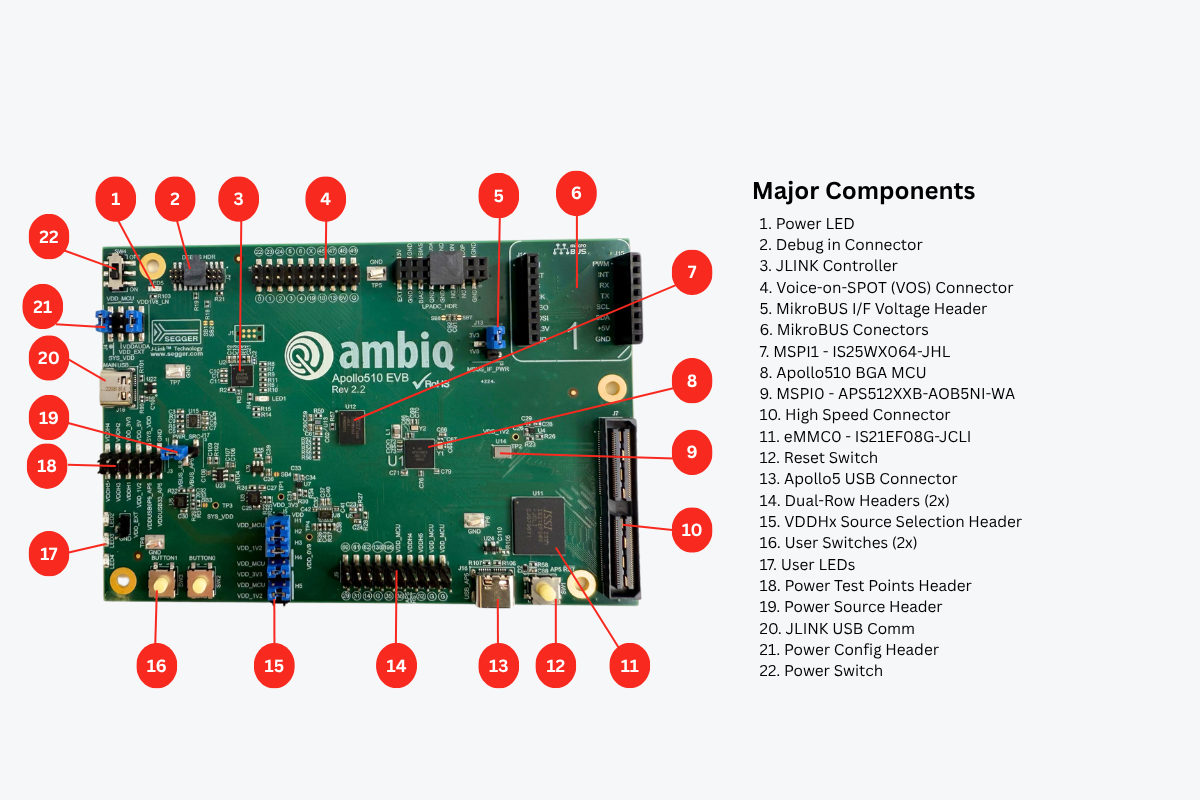

    Apollo510 SoC Eval Board

    AP510EVB

    Apollo510 Evaluation Board
    Apollo510 SoC 250Mhz 3.75MB BGA 2
    Apollo510 SoC 250Mhz 3.75MB BGA

    AP510NFA-CBR

    Apollo510 BGA
    Apollo510 SoC 250Mhz 3.75MB CSP 2
    Apollo510 SoC 250Mhz 3.75MB CSP

    AP510NFA-CCR

    Apollo510 CSP

    Design Resources

    Additional Documentation

    • Set favorites
    • Get update notifications
    • Use search filters
    Visit Content Portal

    Frequently Asked Questions (FAQ)

    • Apollo510 is an ultra-low power edge AI system-on-chip (SoC) from Ambiq designed for intelligent battery-powered devices.

    • Apollo510 supports wearables, healthcare devices, smart home products, industrial sensors, voice interfaces, and consumer electronics.

    • Apollo510 uses Ambiq’s SPOT® platform to reduce power consumption while maintaining high processing performance.

    • Yes. Apollo510 includes dedicated AI acceleration capabilities designed for on-device machine learning and intelligent sensing applications.

    • Apollo510 includes secure boot, hardware security features, encryption support, and protection mechanisms for edge devices.

    No results found for “”
    Our website uses cookies

    Our website use cookies. By continuing navigating, we assume your permission to deploy cookies as detailed in our Privacy Policy.

    Video title

    Preparing to download

    Link for download:

    Comparison Table

    Discover the ideal solution for your application.

    Select products

    Discover the ideal solution for your application.

    Apollo Families

    Parameters

    SoC Frequency

    SoC

    SoC CoreMark®Power Efficiency

    NVM

    SRAM

    Voltage

    ADC

    UART

    I/O

    MSPI Master

    I²S

    Audio

    Display

    Graphics

    Security

    Connectivity

    RF Sensitivity

    Tx Output Power

    Packages

    Ordering Information

    Evaluation boards and kits

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    Apollo510 Lite

    96 MHz
    192 / 250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium™ technology, DMA

    >120

    2MB

    2MB

    1.71-2.2V

    12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC

    2

    I2C/SPI masters (6x)
    1x full-duplex I²C/SPI Slave
    USB 2.0 FS/HS
    SDIO (v3.0) / eMMC (2x)

    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)

    I²S Master/Slave full-duplex (1x)

    PDM stereo DMIC interface (1x)
    PLL for Precision Audio

    SPI 3-wire/4-wire Dual/QuadSPI
    MIPI DSI at 1.5 Gbps (2 lanes)
    1-layer Display Controller
    Memory in Pixel (MiP) Interface

    2D/2.5D GPU with anti-aliasing, dithering, and HW vector graphics acceleration

    secureSPOT® 3.0
    Arm TrustZone® Security

    -

    -

    -

    5.3 x 5.3 x 0.8 mm, BGA w/ 120 GPIO
    4.0 x 4.0 x 0.5 mm, CSP w/ 68 GPIO

    AP510NLA-CCR (CSP), AP510NLA-CBR (BGA)

    Apollo510B Lite

    96 MHz
    192 / 250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium™ technology
    Network coprocessor, DMA

    >120

    2MB

    2MB

    1.71-2.2V

    12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC

    2

    I2C/SPI masters (6x)
    1x full-duplex I²C/SPI Slave
    USB 2.0 FS/HS
    SDIO (v3.0) / eMMC (2x)

    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)

    I²S Master/Slave full-duplex (1x)

    PDM stereo DMIC interface (1x)
    PLL for Precision Audio

    SPI 3-wire/4-wire Dual/QuadSPI
    MIPI DSI at 1.5 Gbps (2 lanes)
    1-layer Display Controller
    Memory in Pixel (MiP) Interface

    2D/2.5D GPU with anti-aliasing, dithering, and HW vector graphics acceleration

    secureSPOT® 3.0
    Arm TrustZone® Security

    Bluetooth Low Energy 5.4

    -95/-98/-104dBm
    (2Mbps/1Mbps/125kbps)

    Up to +13dBm

    5.3 x 5.3 x 0.8 mm, BGA w/ 120 GPIO
    4.0 x 4.0 x 0.5 mm, CSP w/ 68 GPIO

    AP510BLA-CCR (CSP), AP510BLA-ICR (CSP)

    Apollo510D Lite

    96 MHz
    192 / 250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium™ technology
    Network coprocessor, DMA

    >120

    2MB

    2MB

    1.71-2.2V

    12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC

    2

    I2C/SPI masters (6x)
    1x full-duplex I²C/SPI Slave
    USB 2.0 FS/HS
    SDIO (v3.0) / eMMC (2x)

    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)

    I²S Master/Slave full-duplex (1x)

    PDM stereo DMIC interface (1x)
    PLL for Precision Audio

    SPI 3-wire/4-wire Dual/QuadSPI
    MIPI DSI at 1.5 Gbps (2 lanes)
    1-layer Display Controller
    Memory in Pixel (MiP) Interface

    2D/2.5D GPU with anti-aliasing, dithering, and HW vector graphics acceleration

    secureSPOT® 3.0
    Arm TrustZone® Security

    Bluetooth Low Energy 5.4
    Bluetooth Classic

    -95/-98/-104dBm
    (2Mbps/1Mbps/125kbps)

    Up to +13dBm

    5.3 x 5.3 x 0.8 mm, BGA w/ 120 GPIO
    4.0 x 4.0 x 0.5 mm, CSP w/ 68 GPIO

    AP510DLA-CCR (CSP), AP510DLA-CBR (BGA), AP510DLA-IBR (BGA)

    Apollo510B

    96 MHz
    250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium™ technology, DMA Network coprocessor

    120

    4MB

    3.75MB

    1.71-2.2V

    12-bit, 11-channel, up to 2.8 MS/s Sampling Rate ADC

    4

    I²C/SPI Master (7x)
    1x full-duplex/1x half-duplex I²C/SPI Slave
    USB 2.0 FS/HS
    SDIO v3.0/eMMC (2x)

    1/2/4/8-bit wide (1x)
    up to 96 MT/s (SDR/DDR)
    1/2/4/8/16-bit wide (1x)
    up to 250 MT/s (SDR/DDR)

    I²S Master/Slave (2x)
    full-duplex with ASRC (1x)

    PDM stereo DMIC interface (1x)
    Low Power Audio ADC (1x)
    PLL for Precision Audio

    SPI 3-wire/4-wire Dual/QuadSPI
    MIPI DSI at 1.5 Gbps (2 lanes)
    4-layer Display Controller

    2D/2.5D GPU with anti-aliasing, dithering, and HW vector graphics acceleration

    secureSPOT 3.0
    Arm TrustZone Security

    Bluetooth Low Energy 5.4

    -94/-97/-103dBm (2Mbps/1Mbps/125kbps)

    Up to +6dBm

    5.6 x 5.6 x 0.8 mm,
    BGA w/97 GPIO

    • AP510BFA-CBR (BGA)
    • AP510BEVB (EVB)

    Apollo510

    96 MHz
    250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium, DMA

    Contact Ambiq

    4MB

    3.75MB

    1.71-2.2 V

    12-bit, 11-channel, up to 2.8 MS/s Sampling Rate ADC

    4

    I²C/SPI Master (8x) 1x full-duplex/1x half-duplex I²C/SPI Slave USB 2.0 FS/HS SDIO v3.0/eMMC (2x) Support for multiple I/O voltages ranging 1.14 to 3.63V

    1/2/4/8-bit wide (2x) up to 96 MT/s (SDR/DDR) 1/2/4/8/16-bit wide (2x) up to 250 MT/s (SDR/DDR)

    I²S Master/Slave (2x) full-duplex with ASRC (1x)

    PDM stereo DMIC interface (1x) Low Power Audio ADC (1x) PLL for Precision Audio

    SPI 3-wire/4-wire Dual/QuadSPI MIPI DSI at 1.5 Gbps (2 lanes) 4-layer Display Controller Memory in Pixel (MiP) Interface

    2D/2.5D GPU with anti-aliasing, dithering, and vector graphics acceleration

    secureSPOT 3.0 Arm TrustZone®

    -

    -

    -

    • 6.6 x 6.6 mm, BGA w/ 183 GPIO
    • 4.9 x 4.7 mm, CSP w/ 144 GPIO

    • AP510NFA-CBR (BGA)
    • AP510NFA-CCR (CSP)

    Apollo4 Blue Plus

    96 MHz, 192 MHz turboSPOT

    32-bit Arm Cortex-M4F, DMA, Arm Cortex-M0 for Bluetooth Low Energy

    29 µW/MHz

    2MB

    2.75MB

    1.71-2.2 V

    12-bit, 11-channel, up to 2.8 MS/s Sampling Rate ADC

    4

    I²C/SPI Master (7x) I²C/SPI Slave USB 2.0 FS SDIO v3.0/eMMC (1x)

    1/2/4/8-bit wide (2x) 1/2/4/8/16-bit wide (KXR pkg only) up to 96 MT/s (SDR/DDR)

    I²S Master/Slave (2x) , full-duplex with ASRC

    PDM stereo DMIC interface (4x) Low Power Stereo Audio ADC (1x)

    SPI 3-wire/4-wire Dual/QuadSPI MIPI DSI at 500 Mbps (1 lane) 4-layer Display Controller

    2D/2.5D GPU with anti-aliasing, dithering, and vector graphics assist

    secureSPOT 2.0 Secure Boot, Root of Trust

    Bluetooth Low Energy 5.4

    -95 dBm

    Up to +6 dBm

    4.7 x 4.7 mm, BGA-131 w/ 81 GPIO

    • AMA4B2KP-KXR (BGA)
    • AMA4B2KP-KBR (BGA)
    • AMAP4BPXEVB (EVB)

    Apollo4 Blue Lite

    96 MHz, 192 MHz turboSPOT

    32-bit Arm Cortex-M4F, DMA, Arm Cortex-M0 for Bluetooth Low Energy

    38 µW/MHz

    2MB

    1.4MB

    1.71-2.2 V

    12-bit, 11-channel, up to 2.8 MS/s Sampling Rate ADC

    4

    I²C/SPI Master (7x) I²C/SPI Slave SDIO v3.0/eMMC (1x)

    1/2/4/8-bit wide (2x) 1/2/4/8/16-bit wide up to 96 MT/s (SDR/DDR)

    I²S Master/Slave, full-duplex

    PDM stereo DMIC interface (1x)

    SPI 3-wire/4-wire Dual/QuadSPI

    2D/2.5D GPU with anti-aliasing and dithering

    secureSPOT 2.0 Secure Boot, Root of Trust

    Bluetooth Low Energy 5.4

    -95 dBm

    Up to +6 dBm

    • 4.7 x 4.7 mm, BGA-131 w/ 75 GPIO

    • AMA4B2KL-KXR (BGA)
    • AMA4BLEVB (EVB)

    Apollo4 Lite

    96 MHz, 192 MHz turboSPOT

    32-bit Arm Cortex-M4F, DMA

    38 µW/MHz

    2MB

    1.4MB

    1.71-2.2 V

    12-bit, 11-channel, up to 2.8 MS/s Sampling Rate ADC

    4

    I²C/SPI Master (8x) I²C/SPI Slave SDIO v3.0/eMMC (1x)

    1/2/4/8-bit wide (2x) 1/2/4/8/16-bit wide up to 96 MT/s (SDR/DDR)

    I²S Master/Slave (2x) full-duplex

    PDM stereo DMIC interface (1x)

    SPI 3-wire/4-wire Dual/QuadSPI

    2D/2.5D GPU with anti-aliasing, and dithering

    secureSPOT 2.0 Secure Boot, Root of Trust

    Bluetooth Low Energy 5.4

    -95 dBm

    Up to +6 dBm

    • 5 x 5 mm, BGA-146 w/ 84 GPIO

    • AMAP42KL-KBR (BGA)
    • AMAP4LEVB (EVB)

    Apollo4 Plus

    96 MHz 192 MHz turboSPOT

    32-bit Arm Cortex-M4F, DMA

    29 µW/MHz

    2MB

    2.75MB

    1.71-2.2 V

    12-bit, 11-channel, up to 2.8 MS/s Sampling Rate ADC

    4

    I²C/SPI Master (8x) I²C/SPI Slave USB 2.0 FS SDIO v3.0/eMMC (1x)

    1/2/4/8-bit wide (2x) 1/2/4/8/16-bit wide up to 96 MT/s (SDR/DDR)

    I²S Master/Slave (2x) full-duplex with ASRC

    PDM stereo DMIC interface (4x) Low Power Stereo Audio ADC (1x)

    SPI 3-wire/4-wire Dual/QuadSPI MIPI DSI at 500 Mbps (2 lanes) 4-layer Display Controller

    2D/2.5D GPU with anti-aliasing, dithering, and vector graphics assist

    secureSPOT 2.0 Secure Boot, Root of Trust

    -

    -

    -

    • 5 x 5 mm, BGA-146 w/ 105 GPIO

    • AMAP42KP-KBR (BGA)
    • AMAP4PEVB (EVB)
    • AMAP4PDISP (Display Kit)

    Apollo4

    < 14nA with RC oscillator
    < 22nA with RC oscillator
    and autocalibration
    < 55nA with crystal oscillator

    -

    -

    4

    -

    -

    -

    -

    256

    -

    -

    -

    -

    -

    I2C up to 400kHz

    -

    1.5-3.6V

    -40°C to 85°C

    3 mm x 3 mm 16-pin QFN package

    • AM0805AQ • AM1805I2CEVB (EVB)

    Apollo330M Plus

    96 MHz
    250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium™ technology,
    Network coprocessor, DMA

    Contact Ambiq

    2MB

    2MB

    1.71-3.63V

    12-bit, 11-channel, up to 2.8 MS/s Sampling Rate ADC

    2

    I2C/SPI masters (6x)
    1x full-duplex I²C/SPI Slave
    USB 2.0 FS/HS
    SDIO (v3.0) / eMMC (2x)

    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
    1/2/4/8/16-bit wide (1x) up to 250 MT/s (SDR/DDR)

    I²S Master/Slave full-duplex (1x)

    PDM stereo DMIC interface (1x)
    PLL for Precision Audio

    -

    -

    secureSPOT® 3.0
    Arm TrustZone® Security

    Bluetooth Low Energy 5.4, Bluetooth Classic, 802.15.4, Thread, and Matter

    -95/-98/-104dBm (2Mbps/1Mbps/125kbps)

    Up to +13dBm

    5.3 x 5.3 mm, BGA with 120 GPIO
    4.0 x 4.0 mm, CSP with 68 GPIO

    • AP330MPA-CCR (CSP) • AP330MPA-IBR (BGA)

    Apollo330 Plus

    96 MHz
    250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium™ technology, DMA

    Contact Ambiq

    2MB

    2MB

    1.71-3.63V

    12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC

    2

    I2C/SPI masters (6x)
    1x full-duplex I²C/SPI Slave
    USB 2.0 FS/HS
    SDIO (v3.0) / eMMC (2x)

    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
    1/2/4/8/16-bit wide (1x) up to 250 MT/s (SDR/DDR)

    I²S Master/Slave full-duplex (1x)

    PDM stereo DMIC interface (1x)
    PLL for Precision Audio

    -

    -

    secureSPOT® 3.0
    Arm TrustZone® Security

    -

    -

    -

    5.3 x 5.3 mm, BGA with 120 GPIO
    4.0 x 4.0 mm, CSP with 68 GPIO

    • AP330NPA-CCR (CSP)
    • AP330NPA-IBR (BGA)

    Apollo330B Plus

    96 MHz
    250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium™ technology,
    Network coprocessor, DMA

    Contact Ambiq

    2MB

    2MB

    1.71-3.63V

    12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC

    2

    I2C/SPI masters (6x)
    1x full-duplex I²C/SPI Slave
    USB 2.0 FS/HS
    SDIO (v3.0) / eMMC (2x)

    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
    1/2/4/8/16-bit wide (1x) up to 250 MT/s (SDR/DDR)

    I²S Master/Slave full-duplex (1x)

    PDM stereo DMIC interface (1x)
    PLL for Precision Audio

    -

    -

    secureSPOT® 3.0
    Arm TrustZone® Security

    Bluetooth Low Energy 5.4

    -95/-98/-104dBm
    (2Mbps/1Mbps/125kbps)

    Up to +13dBm

    5.3 x 5.3 mm, BGA with 120 GPIO
    4.0 x 4.0 mm, CSP with 68 GPIO

    • AP330BPA-CCR (CSP)
    • AP330BPA-ICR (CSP)

    Apollo3 Blue Plus

    48 MHz, 96 MHz turboSPOT

    32-bit Arm Cortex-M4F, DMA, Arm Cortex-M0 for Bluetooth Low Energy

    33 µW/MHz

    2MB

    768KB

    1.755-3.63 V

    14-bit, 15-channel, up to 2.67 MS/s Sampling Rate ADC

    2

    I²C/SPI Master (6x)

    1/2/4/8-bit wide (3x) up to 48 MT/s (SDR) ISO7816 Master

    I²S Slave for PDM, Audio Pass-through

    PDM stereo DMIC interface (1x)

    SPI 3-wire/4-wire, Dual/QuadSPI

    -

    secureSPOT w/ Secure Boot

    Bluetooth Low Energy 5

    -93 dBm

    Up to +3 dBm

    • 5.3 x 4.3 x 0.8 mm, BGA-108 w/ 74 GPIO

    • AMA3B2KK-KBR (BGA)
    • AMA3B2EVB (EVB)

    Apollo3 Blue

    48 MHz, 96 MHz turboSPOT

    32-bit Arm Cortex-M4F, DMA, Arm Cortex-M0 for Bluetooth Low Energy

    33 µW/MHz

    1MB

    384KB

    1.755-3.63 V

    14-bit, 15-channel, up to 2.67 MS/s Sampling Rate ADC

    2

    I²C/SPI Master (6x) I²C/SPI Slave

    1/2/4/8-bit wide up to 48 MT/s (SDR) ISO7816 Master

    I²S Slave for PDM, Audio Pass-through

    PDM stereo DMIC interface (1x)

    SPI 3-wire/4-wire

    -

    secureSPOT

    Bluetooth® Low Energy 5

    -93 dBm (typical)

    Up to +3 dBm

    • 5 x 5 mm, BGA-81 w/ 50 GPIO
    • 3.25 x 3.37 x 0.51 mm, CSP-66 w/ 37 GPIO
    • 3.25 x 3.37 x 0.34 mm, CSP-66 w/ 37 GPIO (Thin)
    • 8 x 8 mm, QFN-64 w/ 38 GPIO

    • AMA3B1KK-KBR-B0 (BGA)
    • AMA3B1KK-KCR-B0 (CSP)
    • AMA3B1KK-KCR-TB (Thin CSP)
    • AMA3B1KK-KQR-B0 (QFN)
    • AMA3BEVB (EVB)

    Apollo3

    48 MHz 96 MHz turboSPOT®

    32-bit Arm Cortex-M4F, DMA

    33 µW/MHz

    1MB

    384KB

    1.755-3.63 V

    14-bit, 15-channel, up to 2.67 MS/s Sampling Rate ADC

    2

    I²C/SPI Master (6x) I²C/SPI Slave

    1/2/4/8-bit wide up to 48 MT/s (SDR) ISO7816 Master

    I²S Slave for PDM Audio Pass-through

    PDM stereo DMIC interface (1x)

    SPI 3-wire/4-wire

    -

    secureSPOT®

    -

    -

    -

    • 5 x 5 mm, BGA-81 w/ 50 GPIO
    • 3.25 x 3.37 mm, CSP-66 w/ 37 GPIO

    • AMAP31KK-KBR (BGA)
    • AMAP31KK-KCR (CSP)
    • AMA3BEVB

    Apollo2

    48 MHz

    32-bit Arm Cortex-M4F

    39 μW/MHz

    1MB

    256KB

    1.755-3.63 V

    14-bit, 15-channel, up to 2.67 MS/s Sampling Rate ADC

    2

    I²C/SPI Master (6x)

    -

    I²S Slave for PDM Audio Pass-through

    PDM stereo DMIC interface (1x)

    -

    -

    -

    -

    -

    -

    • 4.5 x 4.5 mm, BGA-64 w/ 50 GPIO
    • 2.6 x 2.6 x 0.51 mm, CSP-49 w/ 34 GPIO
    • 2.6 x 2.6 x 0.33 mm, CSP-49 w/ 34 GPIO (Thin)

    • AMAPH1KK-KBR (BGA)
    • AMAPH1KK-KCR (CSP)
    • AMAPH1KK-KCR-TB (Thin CSP)
    • AMAPHEVB (EVB)

    Apollo

    24 MHz

    32-bit Arm® Cortex®-M4F

    92 μW/MHz

    512KB

    64KB

    2.2-3.8 V

    10-bit, 13-channel, up to 800 kSps Sampling Rate ADC

    1

    I²C/SPI Master (2x) I2C/SPI Slave

    -

    -

    -

    -

    -

    -

    -

    -

    -

    • 4.5 mm x 4.5 mm, 64-pin BGA with 50 GPIO
    • 2.49 mm x 2.90 mm, 41-pin WLCSP with 27 GPIO

    • APOLLO512-KBR (BGA)
    • APOLLO512-KCR (WLCSP)
    • AMAP1EVB (EVB)

    First

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    Second

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    Third

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    No results found for “”
