    Apollo510 Lite SoC Series

    Smart. Connected. Efficient.

    kv mobile Apollo510 Lite Series

    The Apollo510 Lite Series combines ultra-low power consumption, high-performance processing, and robust dual-mode Bluetooth® (BLE 5.4 and Bluetooth Classic) connectivity for next-generation edge devices. Designed to deliver exceptional energy efficiency and seamless graphics performance, these advanced SoCs enable intelligent wearable, healthcare, smart home, and IoT applications with long battery life and reliable wireless connectivity.

    Apollo510 LITE
    Apollo510 Lite
    Apollo510B LITE
    Apollo510B Lite
    Apollo510D LITE
    Apollo510D Lite
    Where to Buy
    Design Resources

    Engineered for the Edge

    01

    Ultra-Low Power Architecture

    Maximize battery life without compromising on performance, thanks to Ambiq’s patented Subthreshold Power Optimized Technology (SPOT®).

    02

    AI-Ready

    Unlock on-device intelligence with a built-in Helium™ AI accelerator for always-on voice, gesture, or sensor-based AI applications.

    03

    Dual-Mode Bluetooth

    Stay connected across legacy and modern devices with integrated support for Bluetooth® Low Energy 5.4 and Classic, ensuring universal compatibility and next-gen wireless performance.

    04

    graphiqSPOT Refined

    Bring stunning visuals to ultra-low power devices with an integrated graphics engine, enabling crisp, responsive displays for wearables and IoT interfaces without compromising battery life.

    Block Diagram Apollo510 Lite Series

    Ambiq Apollo510 Lite diagram

    Comparison Table

    Select chips from the comparison list in the table and find the perfect option for you

    Select products

    Select chips from the comparison list in the table and find the perfect option for you

    ApolloFamiliesLogo

    Apollo510 Lite SoC Series

    Parameters

    SoC Frequency

    SoC

    SoC CoreMark®Power Efficiency

    NVM

    SRAM

    Voltage

    ADC

    UART

    I/O

    MSPI Master

    I²S

    Audio

    Display

    Graphics

    Security

    Connectivity

    RF Sensitivity

    Tx Output Power

    Packages

    Ordering Information

    Apollo510 LITE

    Apollo510 Lite

    96 MHz
    192 / 250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium™ technology, DMA

    >120

    2MB

    2MB

    1.71-2.2V

    12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC

    2

    I2C/SPI masters (6x)
    1x full-duplex I²C/SPI Slave
    USB 2.0 FS/HS
    SDIO (v3.0) / eMMC (2x)

    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)

    I²S Master/Slave full-duplex (1x)

    PDM stereo DMIC interface (1x)
    PLL for Precision Audio

    SPI 3-wire/4-wire Dual/QuadSPI
    MIPI DSI at 1.5 Gbps (2 lanes)
    1-layer Display Controller
    Memory in Pixel (MiP) Interface

    2D/2.5D GPU with anti-aliasing, dithering, and HW vector graphics acceleration

    secureSPOT® 3.0
    Arm TrustZone® Security

    –

    –

    –

    5.3 x 5.3 x 0.8 mm, BGA w/ 120 GPIO
    4.0 x 4.0 x 0.5 mm, CSP w/ 68 GPIO

    AP510NLA-CCR (CSP), AP510NLA-CBR (BGA)

    Apollo510B LITE

    Apollo510B Lite

    96 MHz
    192 / 250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium™ technology
    Network coprocessor, DMA

    >120

    2MB

    2MB

    1.71-2.2V

    12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC

    2

    I2C/SPI masters (6x)
    1x full-duplex I²C/SPI Slave
    USB 2.0 FS/HS
    SDIO (v3.0) / eMMC (2x)

    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)

    I²S Master/Slave full-duplex (1x)

    PDM stereo DMIC interface (1x)
    PLL for Precision Audio

    SPI 3-wire/4-wire Dual/QuadSPI
    MIPI DSI at 1.5 Gbps (2 lanes)
    1-layer Display Controller
    Memory in Pixel (MiP) Interface

    2D/2.5D GPU with anti-aliasing, dithering, and HW vector graphics acceleration

    secureSPOT® 3.0
    Arm TrustZone® Security

    Bluetooth Low Energy 5.4

    -95/-98/-104dBm
    (2Mbps/1Mbps/125kbps)

    Up to +13dBm

    5.3 x 5.3 x 0.8 mm, BGA w/ 120 GPIO
    4.0 x 4.0 x 0.5 mm, CSP w/ 68 GPIO

    AP510BLA-CCR (CSP), AP510BLA-ICR (CSP)

    Apollo510D LITE

    Apollo510D Lite

    96 MHz
    192 / 250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium™ technology
    Network coprocessor, DMA

    >120

    2MB

    2MB

    1.71-2.2V

    12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC

    2

    I2C/SPI masters (6x)
    1x full-duplex I²C/SPI Slave
    USB 2.0 FS/HS
    SDIO (v3.0) / eMMC (2x)

    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)

    I²S Master/Slave full-duplex (1x)

    PDM stereo DMIC interface (1x)
    PLL for Precision Audio

    SPI 3-wire/4-wire Dual/QuadSPI
    MIPI DSI at 1.5 Gbps (2 lanes)
    1-layer Display Controller
    Memory in Pixel (MiP) Interface

    2D/2.5D GPU with anti-aliasing, dithering, and HW vector graphics acceleration

    secureSPOT® 3.0
    Arm TrustZone® Security

    Bluetooth Low Energy 5.4
    Bluetooth Classic

    -95/-98/-104dBm
    (2Mbps/1Mbps/125kbps)

    Up to +13dBm

    5.3 x 5.3 x 0.8 mm, BGA w/ 120 GPIO
    4.0 x 4.0 x 0.5 mm, CSP w/ 68 GPIO

    AP510DLA-CCR (CSP), AP510DLA-CBR (BGA), AP510DLA-IBR (BGA)

    First

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    Second

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    Third

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    No results found for “”

    Apollo510 Lite Series Evaluation Board

    Apollo510D Lite Arm® Cortex®-M55 based SoC in the BGA package (AP510DLA-CBR)

    USB Type C connector for power/download/debug (J16)

    USB Type C connector for power/data to Apollo510D Lite SoC (J18)

    On-board Segger J-Link debugger

    Debug-in port (J2) (SWD or ETM)

    Three user-controlled LEDs

    Two push buttons for application use, plus a reset push button

    On-board interfaces:
    – SDIO 8 GB eMMC (ISSI IS21EF08G-JCLI)
    – High-speed expansion connector
    – MikroBUS socket interface (3.3V or 1.8V interface)

    General purpose male headers (J8 and J13) for I/O and power access to a shield board

    High-speed connector (J7 – QSH-060-01-X-D-A) for interfacing to add-on cards

    RF switch/connector (Murata MM8430-2610RA1) for BLE PHY testing

    Test points for voltage measurements and jumpers for current measurements

    Solder bridge options for power supply flexibility and peripheral access options

    RoHS compliant

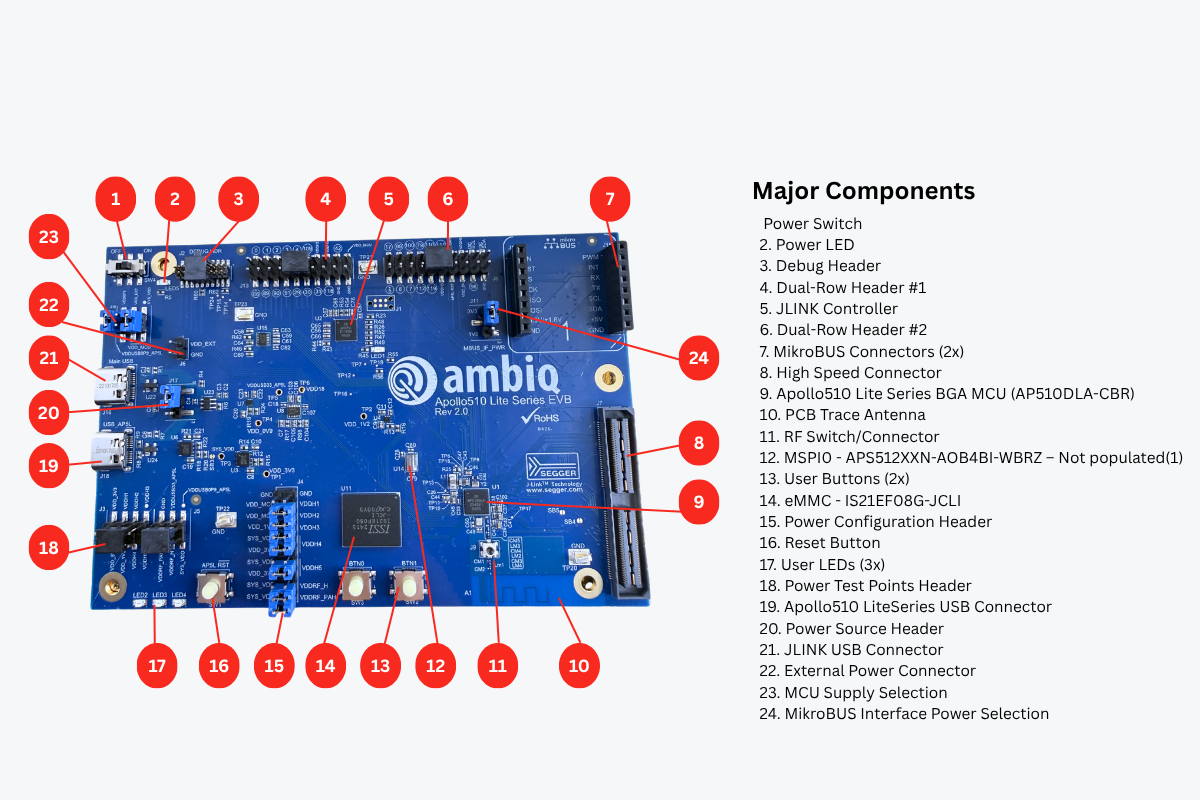

    AP510LEVB Apollo510 Lite EVB Layout 1600x800 1
    AP510LEVB Apollo510 Lite EVB StraightAngle 1600x800 1
    AP510LEVB Apollo510 Lite EVB RightAngle 1600x800 1
    AP510LEVB Apollo510 Lite EVB LeftAngle 1600x800 1
    AP510LEVB Apollo510 Lite EVB Layout 1600x800 1
    AP510LEVB Apollo510 Lite EVB StraightAngle 1600x800 1
    AP510LEVB Apollo510 Lite EVB RightAngle 1600x800 1
    AP510LEVB Apollo510 Lite EVB LeftAngle 1600x800 1
    AP510LEVB Apollo510 Lite EVB Layout 1600x800 1
    AP510LEVB Apollo510 Lite EVB StraightAngle 1600x800 1
    AP510LEVB Apollo510 Lite EVB RightAngle 1600x800 1
    AP510LEVB Apollo510 Lite EVB LeftAngle 1600x800 1

    Where to Buy

    csp
    AP510NLA CCR Apollo510 LITE CS 276x276 1

    AP510NLA-CCR

    Apollo510 Lite CSP
    bga
    AP510NLA CBR Apollo510 LITE BGS 276x276 1

    AP510NLA-CBR

    Apollo510 Lite BGA
    csp
    AP510DLA CCR Apollo510D LITE CSP 276x276 1

    AP510DLA-CCR

    Apollo510D Lite CSP
    bga

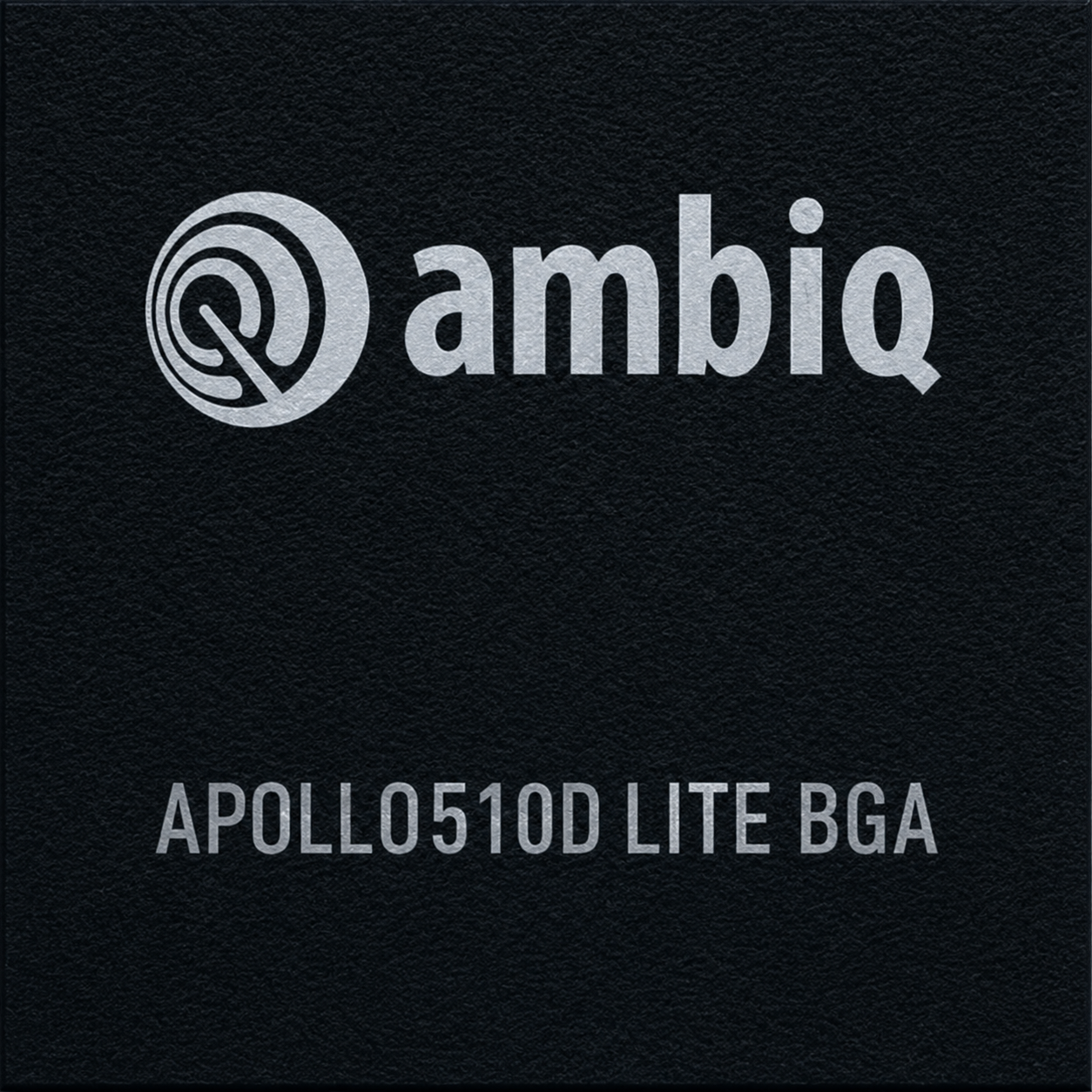

    AP510DLA CBR Apollo510D Lite BGA

    AP510DLA-CBR

    Apollo510D Lite BGA

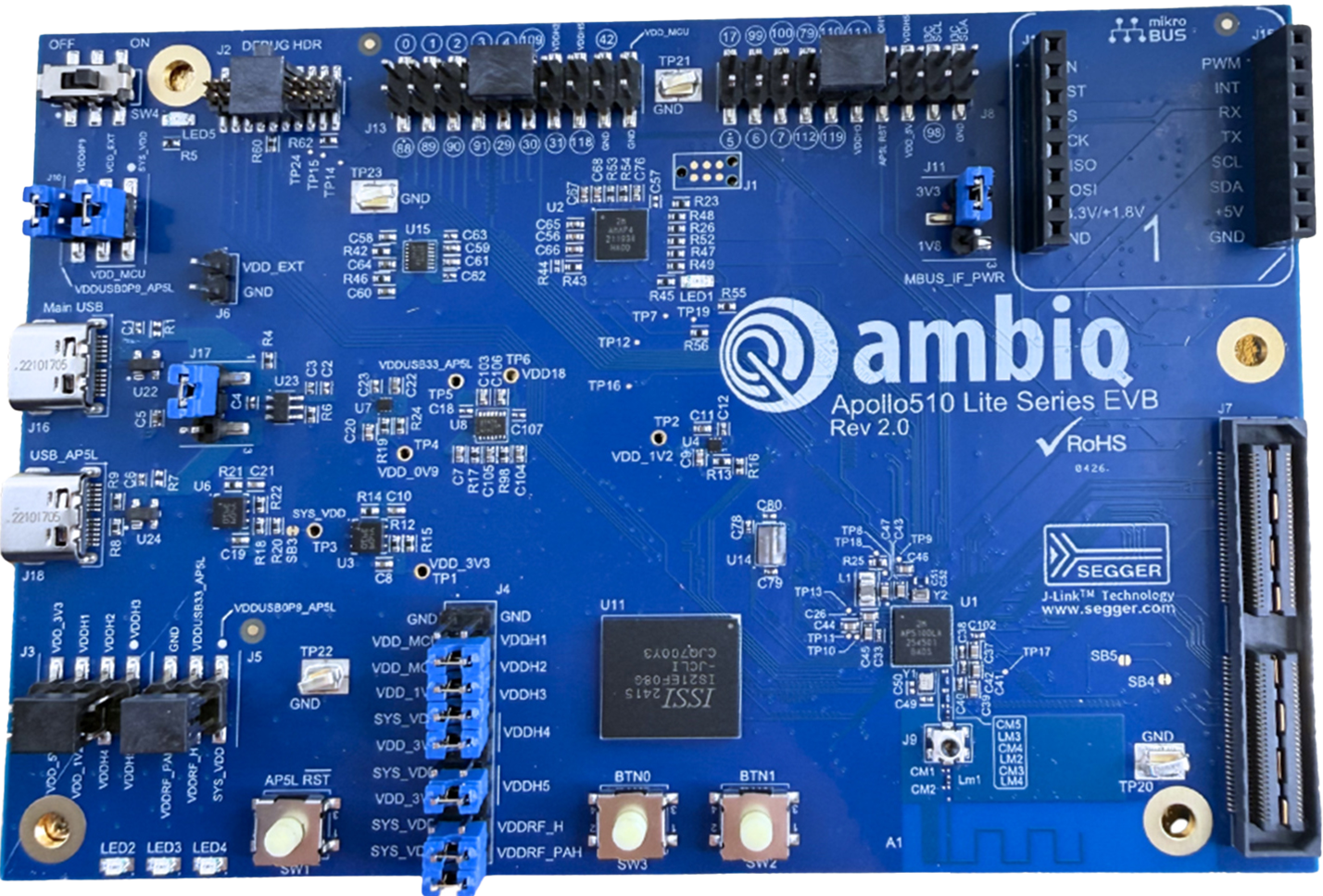

    AP510DLEVB Apollo510 Lite Series EVB Rev 2.0 Main NoBoarder

    AP510DLEVB

    Apollo510 Lite Series Evaluation Board

    Design Resources

    Additional Documentation

    • Set favorites
    • Get update notifications
    • Use search filters
    Visit Content Portal

    Video Library

    hqdefault
    hqdefault
    hqdefault

    Frequently Asked Questions (FAQ)

    • The Apollo510 Lite Series is a family of ultra-low power SoCs that combines high-performance processing, dual-mode Bluetooth® connectivity, advanced graphics capabilities, and exceptional energy efficiency for next-generation connected devices.

    • The Apollo510 Lite Series is designed for wearable devices, healthcare monitors, smart home products, consumer electronics, and industrial IoT applications that require long battery life and reliable wireless connectivity.

    • The Apollo510 Lite Series supports dual-mode Bluetooth®, including Bluetooth® Low Energy (BLE) 5.4 and Bluetooth Classic, enabling flexible connectivity for a wide range of connected devices.

    • The Apollo510 Lite Series is built with Ambiq’s ultra-low SPOT® platform, delivering exceptional energy efficiency that helps reduce power consumption and extend battery life in always-on devices.

    • Yes. The Apollo510 Lite Series is designed to support intelligent on-device processing, enabling Edge AI applications that require real-time responsiveness, low power consumption, and efficient local data processing.

    • The Apollo510 Lite Series includes advanced graphics capabilities that support rich user interfaces, smooth display performance, and visually engaging experiences on battery-powered devices.
