    Apollo510 Lite SoC Series

    Smart. Connected. Efficient.

    kv mobile Apollo510 Lite Series

    Apollo510 Lite 系列結合了超低功耗、高效能處理能力，以及強大的雙模式 Bluetooth®（BLE 5.4 與 Bluetooth Classic）連線功能，專為新一代邊緣裝置而設計。 這些先進的系統單晶片（SoC）專為提供卓越的能源效率與流暢的圖形處理效能而設計，能為智慧穿戴裝置、醫療保健、智慧家庭及物聯網（IoT）應用提供長效電池續航力與可靠的無線連線能力。

    Apollo510 LITE
    Apollo510 Lite
    Apollo510B LITE
    Apollo510B Lite
    Apollo510D LITE
    Apollo510D Lite
    購買地點
    設計資源

    Engineered for the Edge

    01

    Ultra-Low Power Architecture

    憑藉 Ambiq 獲得專利的「亞閾值功率優化技術」（SPOT®），可在不犧牲效能的前提下，將電池續航力發揮至極致。

    02

    AI-Ready

    透過內建的 Helium™ AI 加速器，釋放裝置端的智慧潛能，實現隨時待命的語音、手勢或感測器驅動的 AI 應用。

    03

    Dual-Mode Bluetooth

    透過對 Bluetooth® Low Energy 5.4 及 Classic 的整合支援，讓您能在傳統與現代裝置之間保持連線，確保廣泛的相容性與次世代的無線效能。

    04

    graphiqSPOT Refined

    透過整合式圖形引擎為超低功耗裝置帶來令人驚嘆的視覺效果，為穿戴式裝置和物聯網介面提供清晰、反應靈敏的顯示效果，同時不會影響電池壽命。

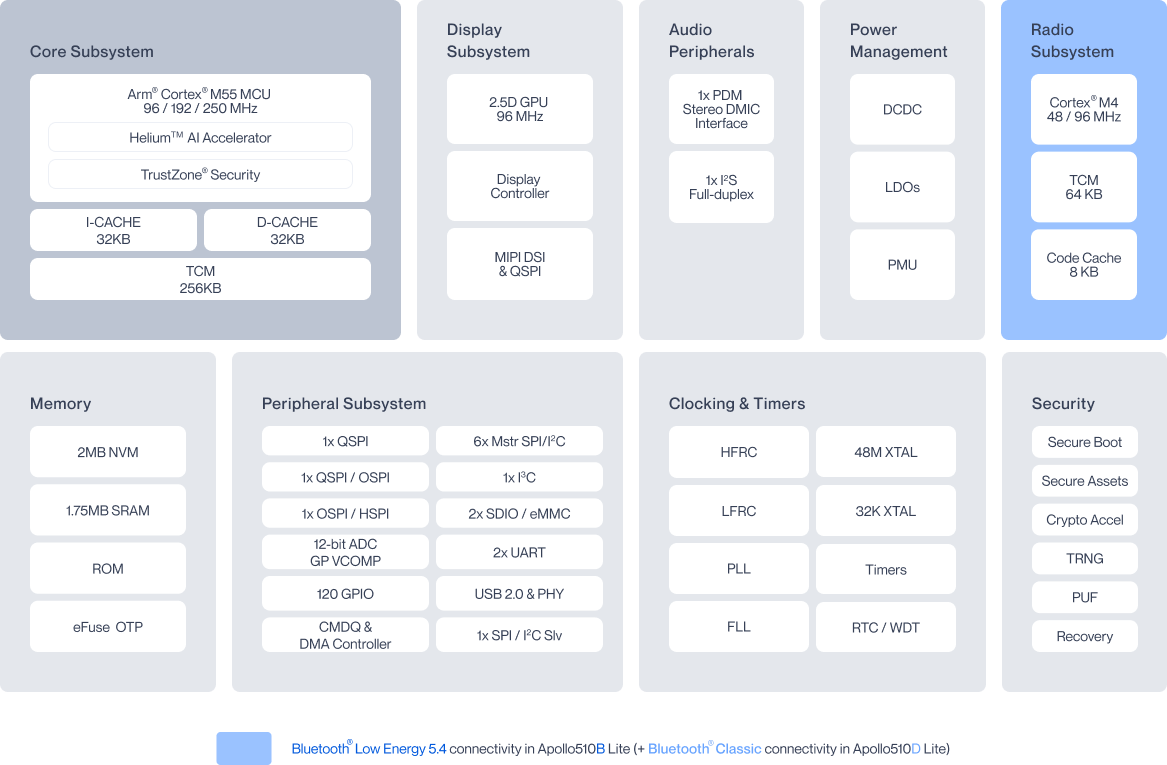

    Block Diagram for the Ultra-Low Power Apollo510 Lite Series

    Ambiq Apollo510 Lite diagram

    Comparison Table

    Select chips from the comparison list in the table and find the perfect option for you

    選擇產品

    Select chips from the comparison list in the table and find the perfect option for you

    ApolloFamiliesLogo

    Apollo510 Lite SoC 系列

    參數

    SoC Frequency

    SoC

    SoC CoreMark®Power Efficiency

    NVM

    SRAM

    Voltage

    ADC

    UART

    I/O

    MSPI Master

    I²S

    Audio

    Display

    Graphics

    Security

    Connectivity

    RF Sensitivity

    Tx Output Power

    Packages

    Ordering Information

    Apollo510 LITE

    Apollo510 Lite

    96 MHz
    192 / 250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium™ technology, DMA

    >120

    2MB

    2MB

    1.71-2.2V

    12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC

    2

    I2C/SPI masters (6x)
    1x full-duplex I²C/SPI Slave
    USB 2.0 FS/HS
    SDIO (v3.0) / eMMC (2x)

    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)

    I²S Master/Slave full-duplex (1x)

    PDM stereo DMIC interface (1x)
    PLL for Precision Audio

    SPI 3-wire/4-wire Dual/QuadSPI
    MIPI DSI at 1.5 Gbps (2 lanes)
    1-layer Display Controller
    Memory in Pixel (MiP) Interface

    2D/2.5D GPU with anti-aliasing, dithering, and HW vector graphics acceleration

    secureSPOT® 3.0
    Arm TrustZone® Security

    –

    –

    –

    5.3 x 5.3 x 0.8 mm, BGA w/ 120 GPIO
    4.0 x 4.0 x 0.5 mm, CSP w/ 68 GPIO

    AP510NLA-CCR (CSP), AP510NLA-CBR (BGA)

    Apollo510B LITE

    Apollo510B Lite

    96 MHz
    192 / 250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium™ technology
    Network coprocessor, DMA

    >120

    2MB

    2MB

    1.71-2.2V

    12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC

    2

    I2C/SPI masters (6x)
    1x full-duplex I²C/SPI Slave
    USB 2.0 FS/HS
    SDIO (v3.0) / eMMC (2x)

    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)

    I²S Master/Slave full-duplex (1x)

    PDM stereo DMIC interface (1x)
    PLL for Precision Audio

    SPI 3-wire/4-wire Dual/QuadSPI
    MIPI DSI at 1.5 Gbps (2 lanes)
    1-layer Display Controller
    Memory in Pixel (MiP) Interface

    2D/2.5D GPU with anti-aliasing, dithering, and HW vector graphics acceleration

    secureSPOT® 3.0
    Arm TrustZone® Security

    Bluetooth Low Energy 5.4

    -95/-98/-104dBm
    (2Mbps/1Mbps/125kbps)

    Up to +13dBm

    5.3 x 5.3 x 0.8 mm, BGA w/ 120 GPIO
    4.0 x 4.0 x 0.5 mm, CSP w/ 68 GPIO

    AP510BLA-CCR (CSP), AP510BLA-ICR (CSP)

    Apollo510D LITE

    Apollo510D Lite

    96 MHz
    192 / 250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium™ technology
    Network coprocessor, DMA

    >120

    2MB

    2MB

    1.71-2.2V

    12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC

    2

    I2C/SPI masters (6x)
    1x full-duplex I²C/SPI Slave
    USB 2.0 FS/HS
    SDIO (v3.0) / eMMC (2x)

    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
    1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)

    I²S Master/Slave full-duplex (1x)

    PDM stereo DMIC interface (1x)
    PLL for Precision Audio

    SPI 3-wire/4-wire Dual/QuadSPI
    MIPI DSI at 1.5 Gbps (2 lanes)
    1-layer Display Controller
    Memory in Pixel (MiP) Interface

    2D/2.5D GPU with anti-aliasing, dithering, and HW vector graphics acceleration

    secureSPOT® 3.0
    Arm TrustZone® Security

    Bluetooth Low Energy 5.4
    Bluetooth Classic

    -95/-98/-104dBm
    (2Mbps/1Mbps/125kbps)

    Up to +13dBm

    5.3 x 5.3 x 0.8 mm, BGA w/ 120 GPIO
    4.0 x 4.0 x 0.5 mm, CSP w/ 68 GPIO

    AP510DLA-CCR (CSP), AP510DLA-CBR (BGA), AP510DLA-IBR (BGA)

    First

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    Second

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    Third

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    –

    No results found for “”

    Where to Buy

    csp
    AP510NLA CCR Apollo510 LITE CS 276x276 1
    Apollo510 Lite CSP (AP510NLA-CCR)
    bga
    AP510NLA CBR Apollo510 LITE BGS 276x276 1
    Apollo510 Lite BGA (AP510NLA-CBR)
    csp
    AP510DLA CCR Apollo510D LITE CSP 276x276 1
    Apollo510D Lite CSP (AP510DLA-CCR)
    bga
    AP510DLA CBR Apollo510D Lite BGA
    Apollo510D Lite BGA (AP510DLA-CBR)

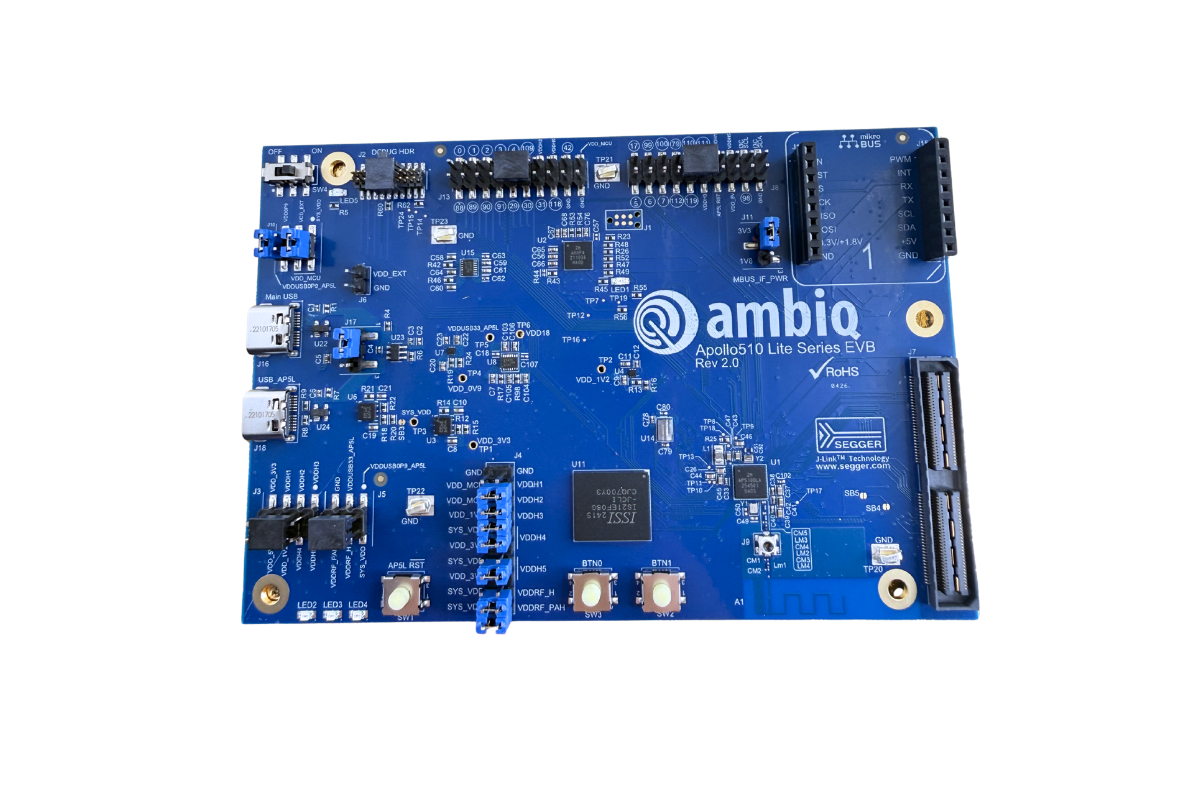

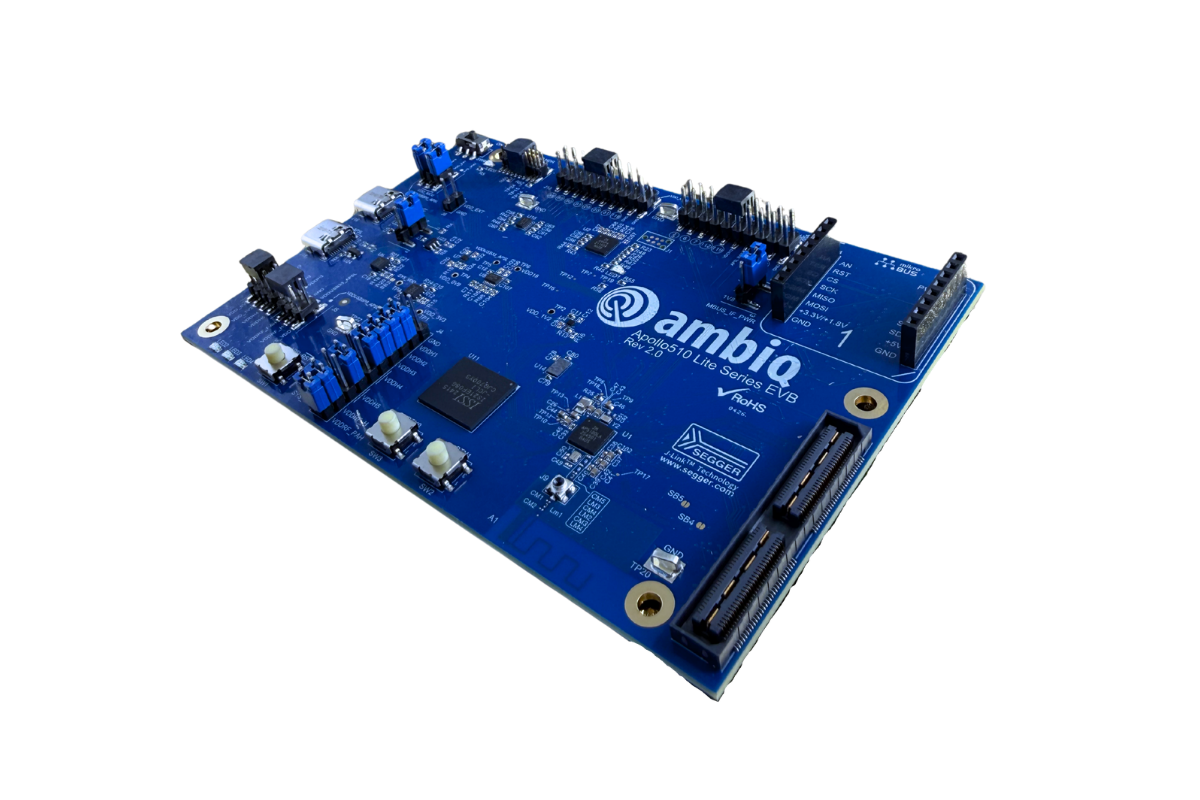

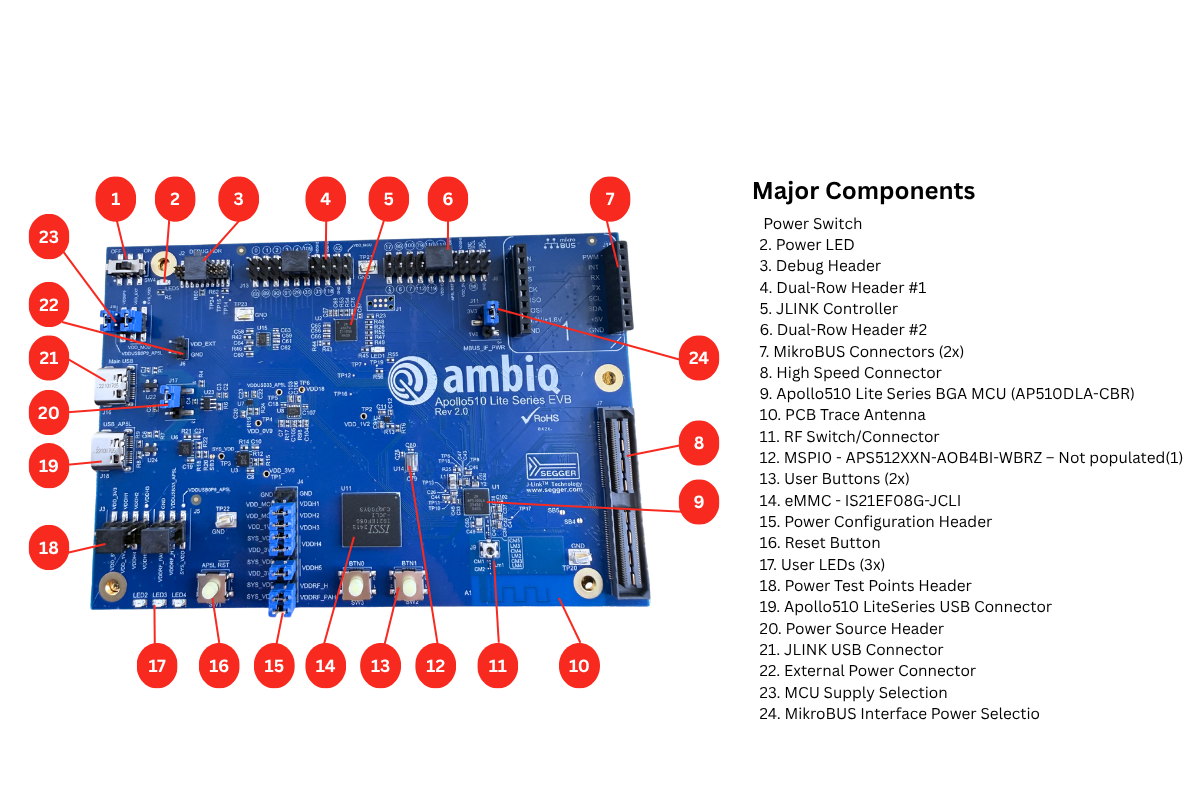

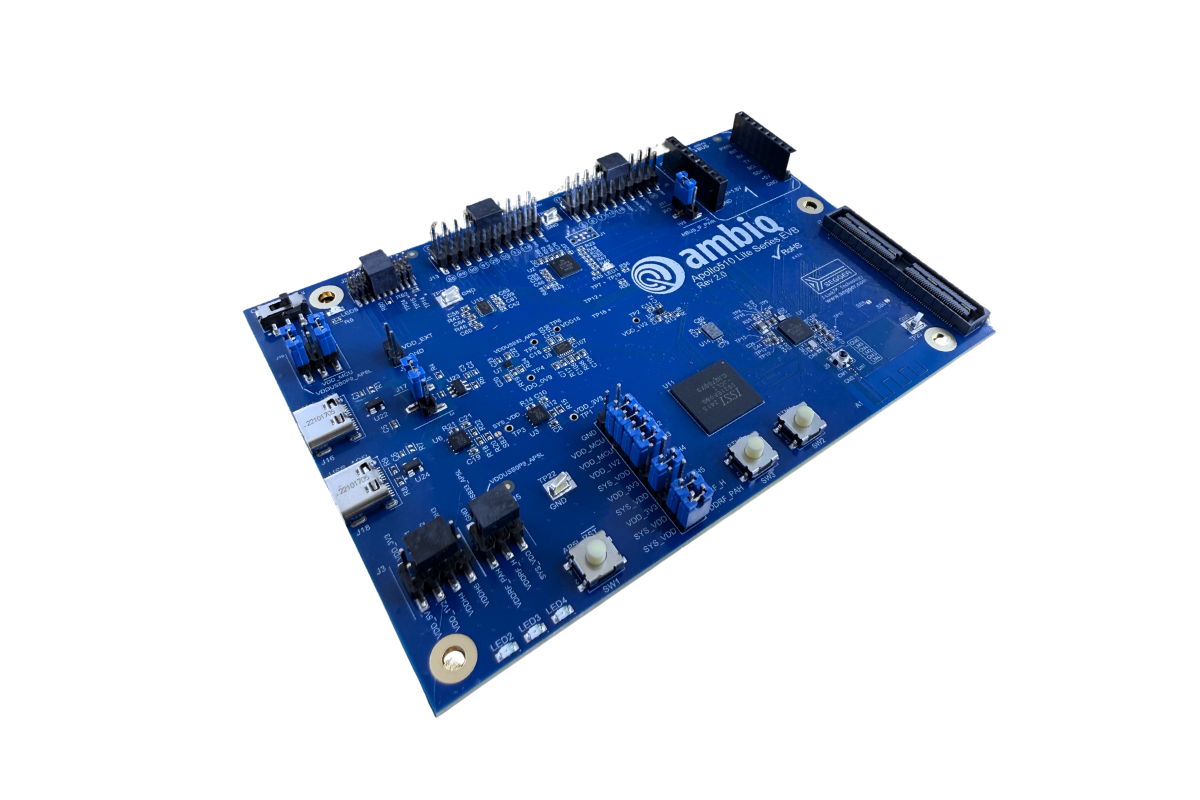

    AP510DLEVB Apollo510 Lite Series EVB Rev 2.0 Main NoBoarder
    Apollo510 Lite Series EVB (AP510DLEVB)

    Design Resources

    Download resources including Product Briefs, Selector Guides, White Paper, Case Studies, Analyst Reports, and more

    其他文檔

    • 設置收藏夾
    • 取得更新通知
    • 使用搜尋過濾器
    造訪內容入口網站

    Video Library

    hqdefault
    hqdefault
    hqdefault

    Frequently Asked Questions (FAQ)

    • The Apollo510 Lite Series is a family of ultra-low power SoCs that combines high-performance processing, dual-mode Bluetooth® connectivity, advanced graphics capabilities, and exceptional energy efficiency for next-generation connected devices.

    • The Apollo510 Lite Series is designed for wearable devices, healthcare monitors, smart home products, consumer electronics, and industrial IoT applications that require long battery life and reliable wireless connectivity.

    • The Apollo510 Lite Series supports dual-mode Bluetooth®, including Bluetooth® Low Energy (BLE) 5.4 and Bluetooth Classic, enabling flexible connectivity for a wide range of connected devices.

    • The Apollo510 Lite Series is built with Ambiq’s ultra-low SPOT® platform, delivering exceptional energy efficiency that helps reduce power consumption and extend battery life in always-on devices.

    • Yes. The Apollo510 Lite Series is designed to support intelligent on-device processing, enabling Edge AI applications that require real-time responsiveness, low power consumption, and efficient local data processing.

    • The Apollo510 Lite Series includes advanced graphics capabilities that support rich user interfaces, smooth display performance, and visually engaging experiences on battery-powered devices.
