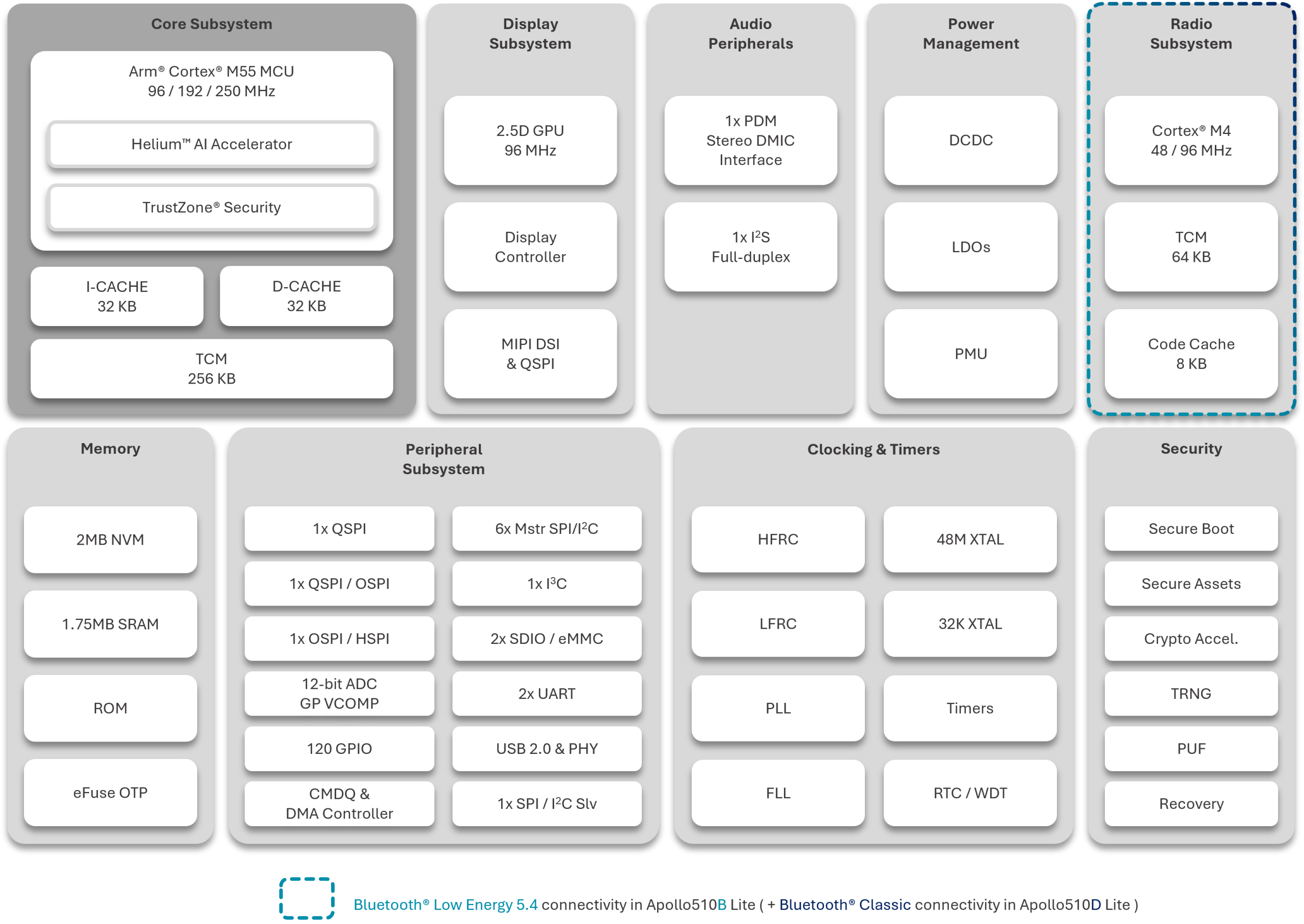

The Apollo510 Lite Series are ultra-low power, high-performance SoCs with robust wireless connectivity, featuring dual-mode Bluetooth® support (BLE 5.4 and Bluetooth Classic). These SoCs deliver best-in-class energy efficiency while enabling seamless, graphical performance for next-gen edge devices.
Select chips from the comparison list in the table and find the perfect option for you
Select chips from the comparison list in the table and find the perfect option for you
SoC Frequency
SoC
SoC CoreMark®Power Efficiency
NVM
SRAM
Voltage
ADC
UART
I/O
MSPI Master
I²S
Audio
Display
Graphics
Security
Connectivity
RF Sensitivity
Tx Output Power
Packages
Ordering Information
Apollo510 Lite
96 MHz
192 / 250 MHz turboSPOT
32-bit Arm Cortex-M55 with Helium™ technology, DMA
>120
2MB
2MB
1.71-2.2V
12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC
2
I2C/SPI masters (6x)
1x full-duplex I²C/SPI Slave
USB 2.0 FS/HS
SDIO (v3.0) / eMMC (2x)
1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
I²S Master/Slave full-duplex (1x)
PDM stereo DMIC interface (1x)
PLL for Precision Audio
SPI 3-wire/4-wire Dual/QuadSPI
MIPI DSI at 1.5 Gbps (2 lanes)
1-layer Display Controller
Memory in Pixel (MiP) Interface
2D/2.5D GPU with anti-aliasing, dithering, and HW vector graphics acceleration
secureSPOT® 3.0
Arm TrustZone® Security
-
-95/-98/-104dBm
(2Mbps/1Mbps/125kbps)
Up to +14dBm
5.3 x 5.3 x 0.8 mm, BGA w/ 120 GPIO
4.0 x 4.0 x 0.5 mm, CSP w/ 68 GPIO
AP510NLA-CCR (CSP), AP510NLA-CBR (BGA)
Apollo510B Lite
96 MHz
192 / 250 MHz turboSPOT
32-bit Arm Cortex-M55 with Helium™ technology
Network coprocessor, DMA
>120
2MB
2MB
1.71-2.2V
12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC
2
I2C/SPI masters (6x)
1x full-duplex I²C/SPI Slave
USB 2.0 FS/HS
SDIO (v3.0) / eMMC (2x)
1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
I²S Master/Slave full-duplex (1x)
PDM stereo DMIC interface (1x)
PLL for Precision Audio
SPI 3-wire/4-wire Dual/QuadSPI
MIPI DSI at 1.5 Gbps (2 lanes)
1-layer Display Controller
Memory in Pixel (MiP) Interface
2D/2.5D GPU with anti-aliasing, dithering, and HW vector graphics acceleration
secureSPOT® 3.0
Arm TrustZone® Security
Bluetooth Low Energy 5.4
-95/-98/-104dBm
(2Mbps/1Mbps/125kbps)
Up to +14dBm
5.3 x 5.3 x 0.8 mm, BGA w/ 120 GPIO
4.0 x 4.0 x 0.5 mm, CSP w/ 68 GPIO
AP510BLA-CCR (CSP), AP510BLA-ICR (CSP)
Apollo510D Lite
96 MHz
192 / 250 MHz turboSPOT
32-bit Arm Cortex-M55 with Helium™ technology
Network coprocessor, DMA
>120
2MB
2MB
1.71-2.2V
12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC
2
I2C/SPI masters (6x)
1x full-duplex I²C/SPI Slave
USB 2.0 FS/HS
SDIO (v3.0) / eMMC (2x)
1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
I²S Master/Slave full-duplex (1x)
PDM stereo DMIC interface (1x)
PLL for Precision Audio
SPI 3-wire/4-wire Dual/QuadSPI
MIPI DSI at 1.5 Gbps (2 lanes)
1-layer Display Controller
Memory in Pixel (MiP) Interface
2D/2.5D GPU with anti-aliasing, dithering, and HW vector graphics acceleration
secureSPOT® 3.0
Arm TrustZone® Security
Bluetooth Low Energy 5.4
Bluetooth Classic
-95/-98/-104dBm
(2Mbps/1Mbps/125kbps)
Up to +14dBm
5.3 x 5.3 x 0.8 mm, BGA w/ 120 GPIO
4.0 x 4.0 x 0.5 mm, CSP w/ 68 GPIO
AP510DLA-CCR (CSP), AP510DLA-CBR (BGA), AP510DLA-IBR (BGA)
