    Apollo4 Blue Plus

    Connecting Brilliance with Visual Excellence

    Apollo4 Blue Plus provides Bluetooth® Low Energy connectivity and superior graphical performance for ultra-low power applications at the endpoint.

    Where to Buy
    Design Resources

    Performance Meets Power Savings

    01

    The Power to Innovate

    Ultra-low power processing of 4µA/MHz at up to 192MHz with turboSPOT® enables next generation devices to do more for longer.

    02

    Visual Brilliance

    High performance 2.5D GPU featuring full alpha blending, vector graphics, and more for vibrant, crystal-clear, and smooth graphics.

    03

    Uncompromising Security

    Certified PSA L1 running advanced secureSPOT® for secure applications. Learn more at https://ambiq.com/securespot/.

    04

    AI-Powered Possibilities

    Experience intelligence at the endpoint, including activity recognition, speech enhancement and de-noising, and real-time health analytics. Learn more at https://ambiq.ai/.

    Block Diagram for the Ultra-Low Power Apollo4 Plus Blue SoC

    Specifications

    Ultra-Low Supply Current

    • 4 μA/MHz executing from MRAM (with cache)
    • Low-power sleep and deep sleep modes with selectable levels of RAM/cache retention

    High-Performance Arm Cortex-M4 Processor with FPU

    • Up to 192 MHz clock frequency
    • Floating Point Unit (FPU)
    • Memory Protection Unit (MPU)

    Bluetooth Low Energy 5.4

    • 2 Mbps, extended advertising packets
    • Angle of Arrival (AOA) and Angle of Departure (AOD)
    • Tx: Up to +6 dBm output power
    • Rx Sensitivity: -95 dBm

    Security Features

    • Secure Boot
    • Secure over-the-air (OTA) updates
    • Secure wired updates
    • Key Revocation

    Ultra-Low Power Memory

    • Up to 2MB of non-volatile MRAM for code/data
    • Up to 2.75MB of low power RAM for code/data

    Ultra-Low Power Interface for On- and Off-Chip Sensors

    • 12-bit ADC, 11 selectable input channels
    • Up to 2.8 MS/s sampling rate
    • Temperature sensor with ±3°C accuracy

    Ultra-Low Power Flexible Serial Peripherals

    • 2x 2/4/8-bit SPI master interfaces
    • 2/4/8/16-bit SPI master interface (16-bit SPI available in AMA4BPK-KXR only)
    • 7x I2C/SPI masters for peripheral communication
    • 1x SPI slave for host communications
    • 4x UART modules with flow control
    • 1x USB 2.0 HS/FS device controller
    • 1x SDIO (SD3.0)/1x eMMC (v4.51)

    Display

    • MIPI DSI 1.2 with 2 data lanes up to 500 Mbps
    • Up to 500 x 500 resolution
    • 4 layers with alpha blending
    • Frame Buffer Decompression

    Graphics

    • 2D/2.5D graphics accelerator
    • Full Alpha Blending
    • Texture and Frame Buffer Compression
    • Anti-Aliasing
    • Dithering
    • Vector Graphics

    Audio Processing

    • 1x stereo Low Power Analog microphones
    • 4x stereo Digital microphones
    • 2x full-duplex I2S ports with ASRC

    Rich Set of Clock Sources

    • 16-52 MHz and 32.768 kHz Crystal (XTAL) oscillators
    • 1 kHz Low Frequency RC (LFRC) oscillator
    • 2x High Frequency RC (HFRC) oscillator – 192/384 MHz

    Power Management

    • Operating range: 1.71-2.2 V, –20°C to 60°C
    • SIMO buck
    • Multiple I/O voltages supported

    Applications

    • Smart watches/bands
    • Wireless sensors and IoT
    • Activity and fitness monitors
    • Children's watches
    • Animal trackers
    • Motion and tracking devices
    • Alarms and security system
    • Far-field voice remotes
    • Consumer medical devices
    • Predictive maintenance
    • Smart home

    Package Options

    • 4.7 mm x 4.7 mm, 131-pin SiP BGA

    Ordering Information

    • AMA4B2KP-KXR (BGA)
    • AMA4B2KP-KBR (BGA)

    Where to Buy

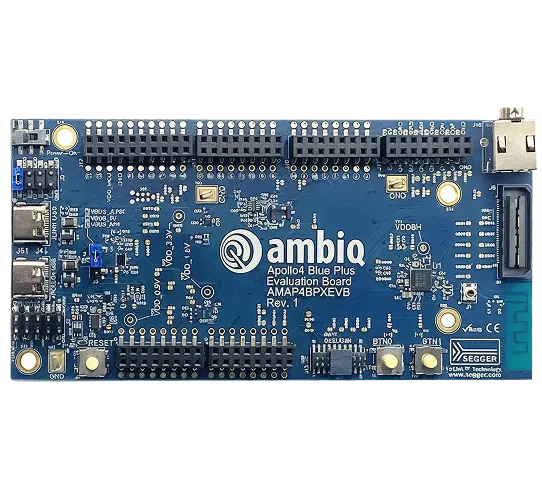

    Apollo4 Blue Plus KXR Evaluation Board
    AMAP4BPXEVB

    Apollo4 Blue Plus (KXR)
    AMA4B2KP-KXR
    Apollo4 Blue Plus SoC

    Apollo4 Blue Plus (KBR)
    AMA4B2KP-KBR

    Apollo4 Plus SoC, 192 MHz, 2.75MB, BGA

    Design Resources

    Browse our Design Resources which includes product briefs, datasheets, selector guides, family brochures, white papers, quick start guides, and more to help you learn more about products.

    Instant download

    Additional documentation

    • Set favorites
    • Get update notifications
    • Use search filters
    Visit Content Portal
    No results found for “”
    Our website uses cookies

    Our website use cookies. By continuing navigating, we assume your permission to deploy cookies as detailed in our Privacy Policy.

    Video title

    Preparing to download
    Form title

    Form text

    Comparison Table

    Discover the ideal solution for your application.

    Select products

    Discover the ideal solution for your application.

    Apollo Families

    Parameters

    SoC Frequency

    SoC

    SoC CoreMark®Power Efficiency

    NVM

    SRAM

    Voltage

    ADC

    UART

    I/O

    MSPI Master

    I²S

    Audio

    Display

    Graphics

    Security

    Connectivity

    RF Sensitivity

    Tx Output Power

    Packages

    Ordering Information

    Apollo510

    96 MHz
    250 MHz turboSPOT

    32-bit Arm Cortex-M55 with Helium, DMA

    Contact Ambiq

    4MB

    3.75MB

    1.71-2.2 V

    12-bit, 11-channel, up to 2.8 MS/s Sampling Rate ADC

    4

    I²C/SPI Master (8x) 1x full-duplex/1x half-duplex I²C/SPI Slave USB 2.0 FS/HS SDIO v3.0/eMMC (2x) Support for multiple I/O voltages ranging 1.14 to 3.63V

    1/2/4/8-bit wide (2x) up to 96 MT/s (SDR/DDR) 1/2/4/8/16-bit wide (2x) up to 250 MT/s (SDR/DDR)

    I²S Master/Slave (2x) full-duplex with ASRC (1x)

    PDM stereo DMIC interface (1x) Low Power Audio ADC (1x) PLL for Precision Audio

    SPI 3-wire/4-wire Dual/QuadSPI MIPI DSI at 1.5 Gbps (2 lanes) 4-layer Display Controller Memory in Pixel (MiP) Interface

    2D/2.5D GPU with anti-aliasing, dithering, and vector graphics acceleration

    secureSPOT 3.0 Arm TrustZone®

    -

    -

    -

    • 6.6 x 6.6 mm, BGA w/ 183 GPIO
    • 4.9 x 4.7 mm, CSP w/ 144 GPIO

    • AP510NFA-CBR (BGA)
    • AP510NFA-CCR (CSP)

    Apollo4 Blue Plus

    96 MHz, 192 MHz turboSPOT

    32-bit Arm Cortex-M4F, DMA, Arm Cortex-M0 for Bluetooth Low Energy

    29 µW/MHz

    2MB

    2.75MB

    1.71-2.2 V

    12-bit, 11-channel, up to 2.8 MS/s Sampling Rate ADC

    4

    I²C/SPI Master (7x) I²C/SPI Slave USB 2.0 FS/HS SDIO v3.0/eMMC (1x)

    1/2/4/8-bit wide (2x) 1/2/4/8/16-bit wide (KXR pkg only) up to 96 MT/s (SDR/DDR)

    I²S Master/Slave (2x) , full-duplex with ASRC

    PDM stereo DMIC interface (4x) Low Power Stereo Audio ADC (1x)

    SPI 3-wire/4-wire Dual/QuadSPI MIPI DSI at 500 Mbps (1 lane) 4-layer Display Controller

    2D/2.5D GPU with anti-aliasing, dithering, and vector graphics assist

    secureSPOT 2.0 Secure Boot, Root of Trust

    Bluetooth Low Energy 5.4

    -95 dBm

    Up to +6 dBm

    • 4.7 x 4.7 mm, BGA-131 w/ 81 GPIO

    • AMA4B2KP-KXR (BGA)
    • AMA4B2KP-KBR (BGA)
    • AMAP4BPXEVB (EVB)

    Apollo4 Blue Lite

    96 MHz, 192 MHz turboSPOT

    32-bit Arm Cortex-M4F, DMA, Arm Cortex-M0 for Bluetooth Low Energy

    38 µW/MHz

    2MB

    1.4MB

    1.71-2.2 V

    12-bit, 11-channel, up to 2.8 MS/s Sampling Rate ADC

    4

    I²C/SPI Master (7x) I²C/SPI Slave SDIO v3.0/eMMC (1x)

    1/2/4/8-bit wide (2x) 1/2/4/8/16-bit wide up to 96 MT/s (SDR/DDR)

    I²S Master/Slave, full-duplex

    PDM stereo DMIC interface (1x)

    SPI 3-wire/4-wire Dual/QuadSPI

    2D/2.5D GPU with anti-aliasing and dithering

    secureSPOT 2.0 Secure Boot, Root of Trust

    Bluetooth Low Energy 5.4

    -95 dBm

    Up to +6 dBm

    • 4.7 x 4.7 mm, BGA-131 w/ 75 GPIO

    • AMA4B2KL-KXR (BGA)
    • AMA4BLEVB (EVB)

    Apollo4 Lite

    96 MHz, 192 MHz turboSPOT

    32-bit Arm Cortex-M4F, DMA

    38 µW/MHz

    2MB

    1.4MB

    1.71-2.2 V

    12-bit, 11-channel, up to 2.8 MS/s Sampling Rate ADC

    4

    I²C/SPI Master (8x) I²C/SPI Slave SDIO v3.0/eMMC (1x)

    1/2/4/8-bit wide (2x) 1/2/4/8/16-bit wide up to 96 MT/s (SDR/DDR)

    I²S Master/Slave (2x) full-duplex

    PDM stereo DMIC interface (1x)

    SPI 3-wire/4-wire Dual/QuadSPI

    2D/2.5D GPU with anti-aliasing, and dithering

    secureSPOT 2.0 Secure Boot, Root of Trust

    Bluetooth Low Energy 5.4

    -95 dBm

    Up to +6 dBm

    • 5 x 5 mm, BGA-146 w/ 84 GPIO

    • AMAP42KL-KBR (BGA)
    • AMAP4LEVB (EVB)

    Apollo4 Plus

    96 MHz 192 MHz turboSPOT

    32-bit Arm Cortex-M4F, DMA

    29 µW/MHz

    2MB

    2.75MB

    1.71-2.2 V

    12-bit, 11-channel, up to 2.8 MS/s Sampling Rate ADC

    4

    I²C/SPI Master (8x) I²C/SPI Slave USB 2.0 FS/HS SDIO v3.0/eMMC (1x)

    1/2/4/8-bit wide (2x) 1/2/4/8/16-bit wide up to 96 MT/s (SDR/DDR)

    I²S Master/Slave (2x) full-duplex with ASRC

    PDM stereo DMIC interface (4x) Low Power Stereo Audio ADC (1x)

    SPI 3-wire/4-wire Dual/QuadSPI MIPI DSI at 500 Mbps (2 lanes) 4-layer Display Controller

    2D/2.5D GPU with anti-aliasing, dithering, and vector graphics assist

    secureSPOT 2.0 Secure Boot, Root of Trust

    -

    -

    -

    • 5 x 5 mm, BGA-146 w/ 105 GPIO

    • AMAP42KP-KBR (BGA)
    • AMAP4PEVB (EVB)
    • AMAP4PDISP (Display Kit)

    Apollo3 Blue Plus

    48 MHz, 96 MHz turboSPOT

    32-bit Arm Cortex-M4F, DMA, Arm Cortex-M0 for Bluetooth Low Energy

    33 µW/MHz

    2MB

    768KB

    1.755-3.63 V

    14-bit, 15-channel, up to 2.67 MS/s Sampling Rate ADC

    2

    I²C/SPI Master (6x)

    1/2/4/8-bit wide (3x) up to 48 MT/s (SDR) ISO7816 Master

    I²S Slave for PDM, Audio Pass-through

    PDM stereo DMIC interface (1x)

    SPI 3-wire/4-wire, Dual/QuadSPI

    -

    secureSPOT w/ Secure Boot

    Bluetooth Low Energy 5

    -93 dBm

    Up to +3 dBm

    • 5.3 x 4.3 x 0.8 mm, BGA-108 w/ 74 GPIO

    • AMA3B2KK-KBR (BGA)
    • AMA3B2EVB (EVB)

    Apollo3 Blue

    48 MHz, 96 MHz turboSPOT

    32-bit Arm Cortex-M4F, DMA, Arm Cortex-M0 for Bluetooth Low Energy

    33 µW/MHz

    1MB

    384KB

    1.755-3.63 V

    14-bit, 15-channel, up to 2.67 MS/s Sampling Rate ADC

    2

    I²C/SPI Master (6x) I²C/SPI Slave

    1/2/4/8-bit wide up to 48 MT/s (SDR) ISO7816 Master

    I²S Slave for PDM, Audio Pass-through

    PDM stereo DMIC interface (1x)

    SPI 3-wire/4-wire

    -

    secureSPOT

    Bluetooth® Low Energy 5

    -93 dBm (typical)

    Up to +3 dBm

    • 5 x 5 mm, BGA-81 w/ 50 GPIO
    • 3.25 x 3.37 x 0.51 mm, CSP-66 w/ 37 GPIO
    • 3.25 x 3.37 x 0.34 mm, CSP-66 w/ 37 GPIO (Thin)
    • 8 x 8 mm, QFN-64 w/ 38 GPIO

    • AMA3B1KK-KBR-B0 (BGA)
    • AMA3B1KK-KCR-B0 (CSP)
    • AMA3B1KK-KCR-TB (Thin CSP)
    • AMA3B1KK-KQR-B0 (QFN)
    • AMA3BEVB (EVB)

    Apollo3

    48 MHz 96 MHz turboSPOT®

    32-bit Arm Cortex-M4F, DMA

    33 µW/MHz

    1MB

    384KB

    1.755-3.63 V

    14-bit, 15-channel, up to 2.67 MS/s Sampling Rate ADC

    2

    I²C/SPI Master (6x) I²C/SPI Slave

    1/2/4/8-bit wide up to 48 MT/s (SDR) ISO7816 Master

    I²S Slave for PDM Audio Pass-through

    PDM stereo DMIC interface (1x)

    SPI 3-wire/4-wire

    -

    secureSPOT®

    -

    -

    -

    • 5 x 5 mm, BGA-81 w/ 50 GPIO
    • 3.25 x 3.37 mm, CSP-66 w/ 37 GPIO

    • AMAP31KK-KBR (BGA)
    • AMAP31KK-KCR (CSP)
    • AMA3BEVB

    Apollo2

    48 MHz

    32-bit Arm Cortex-M4F

    39 μW/MHz

    1MB

    256KB

    1.755-3.63 V

    14-bit, 15-channel, up to 2.67 MS/s Sampling Rate ADC

    2

    I²C/SPI Master (6x)

    -

    I²S Slave for PDM Audio Pass-through

    PDM stereo DMIC interface (1x)

    -

    -

    -

    -

    -

    -

    • 4.5 x 4.5 mm, BGA-64 w/ 50 GPIO
    • 2.6 x 2.6 x 0.51 mm, CSP-49 w/ 34 GPIO
    • 2.6 x 2.6 x 0.33 mm, CSP-49 w/ 34 GPIO (Thin)

    • AMAPH1KK-KBR (BGA)
    • AMAPH1KK-KCR (CSP)
    • AMAPH1KK-KCR-TB (Thin CSP)
    • AMAPHEVB (EVB)

    Apollo

    24 MHz

    32-bit Arm® Cortex®-M4F

    92 μW/MHz

    512KB

    64KB

    2.2-3.8 V

    10-bit, 13-channel, up to 800 kSps Sampling Rate ADC

    1

    I²C/SPI Master (2x) I2C/SPI Slave

    -

    -

    -

    -

    -

    -

    -

    -

    -

    • 4.5 mm x 4.5 mm, 64-pin BGA with 50 GPIO
    • 2.49 mm x 2.90 mm, 41-pin WLCSP with 27 GPIO

    • APOLLO512-KBR (BGA)
    • APOLLO512-KCR (WLCSP)
    • AMAP1EVB (EVB)

    First

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    Second

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    Third

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -
