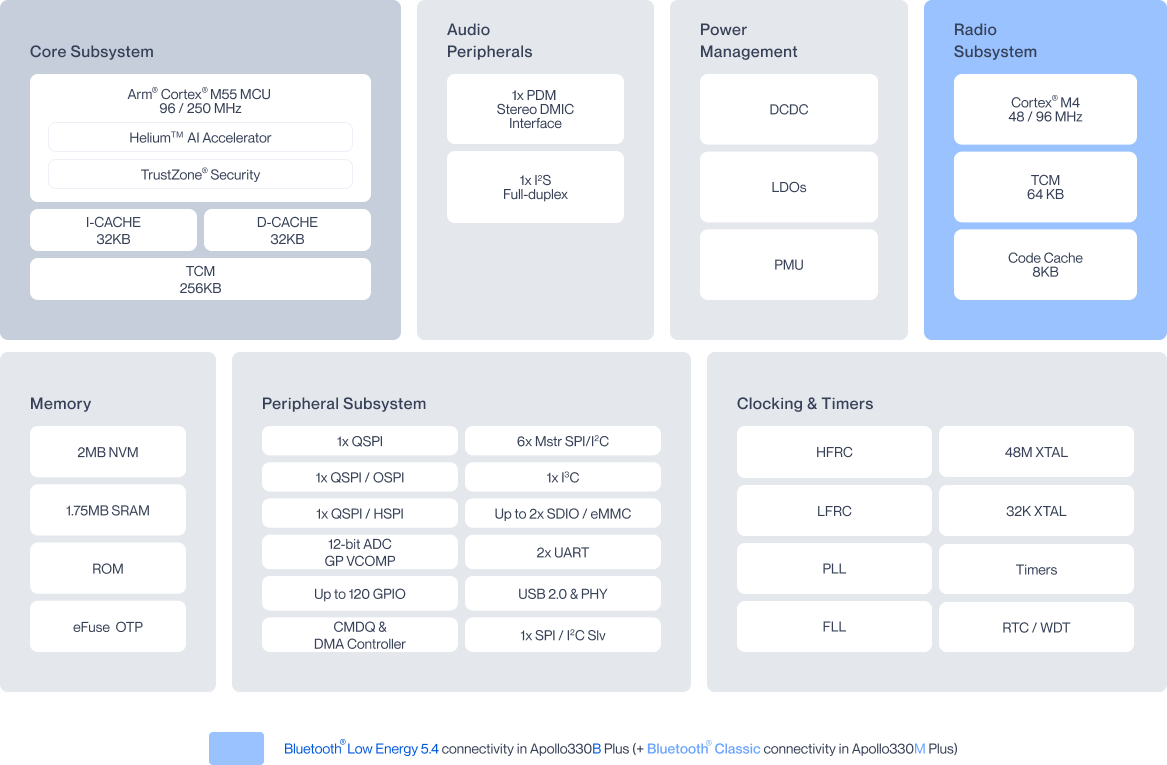

Apollo330 Plus SoC Series

96 MHz
250 MHz turboSPOT

32-bit Arm Cortex-M55 with Helium™ technology,
Network coprocessor, DMA

Contact Ambiq

2MB

2MB

1.71-3.63V

12-bit, 11-channel, up to 2.8 MS/s Sampling Rate ADC

2

I2C/SPI masters (6x)
1x full-duplex I²C/SPI Slave
USB 2.0 FS/HS
SDIO (v3.0) / eMMC (2x)

1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
1/2/4/8/16-bit wide (1x) up to 250 MT/s (SDR/DDR)

I²S Master/Slave full-duplex (1x)

PDM stereo DMIC interface (1x)
PLL for Precision Audio

-

-

secureSPOT® 3.0
Arm TrustZone® Security

Bluetooth Low Energy 5.4, Bluetooth Classic, 802.15.4, Thread, and Matter

-95/-98/-104dBm (2Mbps/1Mbps/125kbps)

Up to +13dBm

5.3 x 5.3 mm, BGA with 120 GPIO
4.0 x 4.0 mm, CSP with 68 GPIO

• AP330MPA-CCR (CSP) • AP330MPA-IBR (BGA)

96 MHz
250 MHz turboSPOT

32-bit Arm Cortex-M55 with Helium™ technology,
Network coprocessor, DMA

Contact Ambiq

2MB

2MB

1.71-3.63V

12-bit, 11 channels, up to 1.7 MS/s Sampling Rate ADC

2

I2C/SPI masters (6x)
1x full-duplex I²C/SPI Slave
USB 2.0 FS/HS
SDIO (v3.0) / eMMC (2x)

1/2/4-bit wide (2x) up to 96 MT/s (SDR/DDR)
1/2/4/8/16-bit wide (1x) up to 250 MT/s (SDR/DDR)

I²S Master/Slave full-duplex (1x)

PDM stereo DMIC interface (1x)
PLL for Precision Audio

-

-

secureSPOT® 3.0
Arm TrustZone® Security

Bluetooth Low Energy 5.4

-95/-98/-104dBm
(2Mbps/1Mbps/125kbps)

Up to +13dBm

5.3 x 5.3 mm, BGA with 120 GPIO
4.0 x 4.0 mm, CSP with 68 GPIO

• AP330BPA-CCR (CSP)
• AP330BPA-ICR (CSP)

48 MHz, 96 MHz turboSPOT

32-bit Arm Cortex-M4F, DMA, Arm Cortex-M0 for Bluetooth Low Energy

33 µW/MHz

2MB

768KB

1.755-3.63 V

14-bit, 15-channel, up to 2.67 MS/s Sampling Rate ADC

2

I²C/SPI Master (6x)

1/2/4/8-bit wide (3x) up to 48 MT/s (SDR) ISO7816 Master

I²S Slave for PDM, Audio Pass-through

PDM stereo DMIC interface (1x)

SPI 3-wire/4-wire, Dual/QuadSPI

-

secureSPOT w/ Secure Boot

Bluetooth Low Energy 5

-93 dBm

Up to +3 dBm

• 5.3 x 4.3 x 0.8 mm, BGA-108 w/ 74 GPIO

• AMA3B2KK-KBR (BGA)
• AMA3B2EVB (EVB)
